AMG

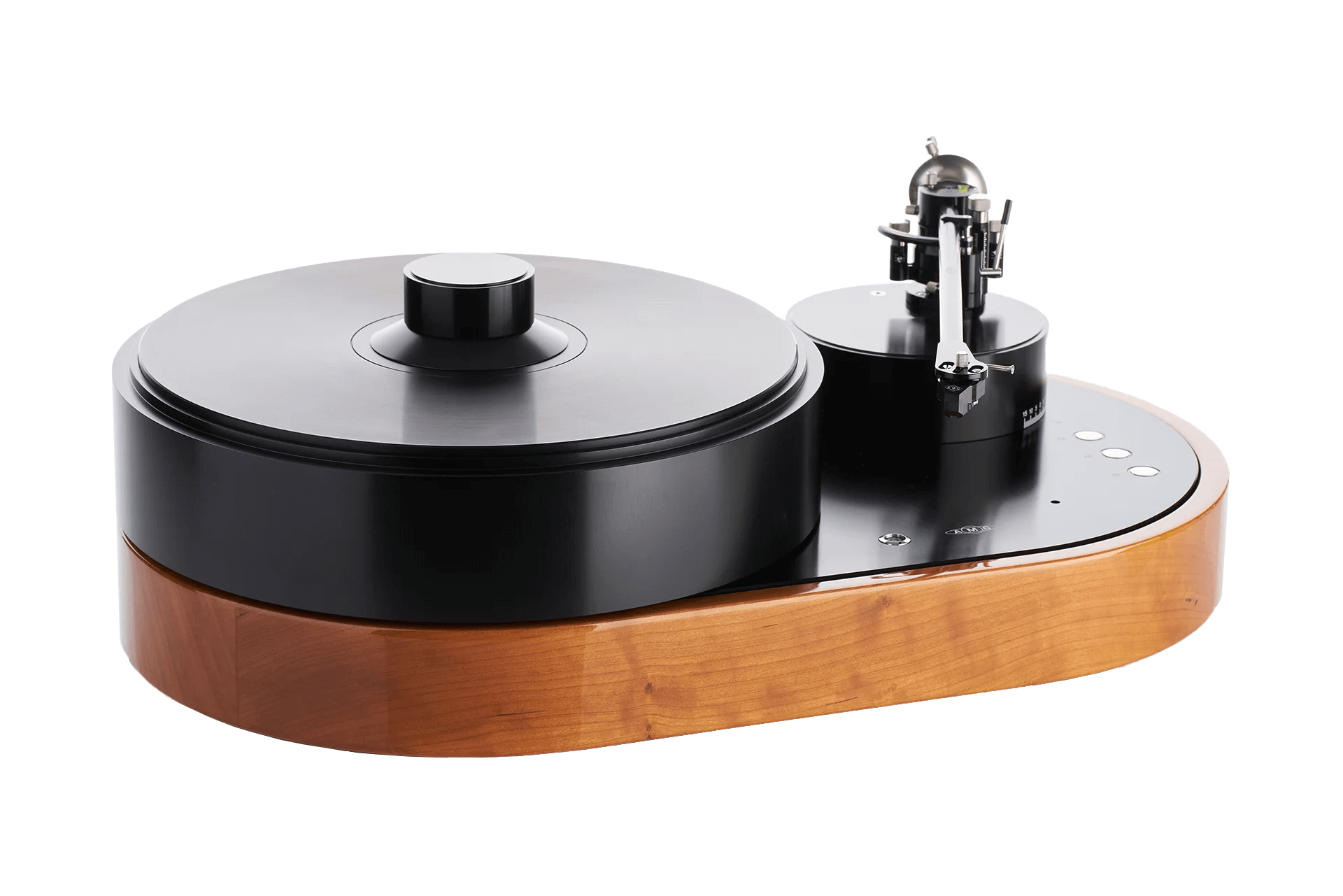

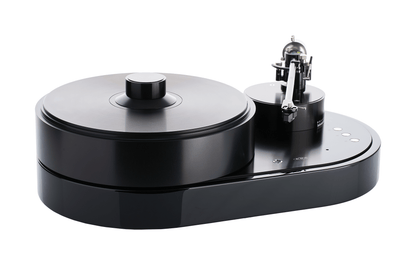

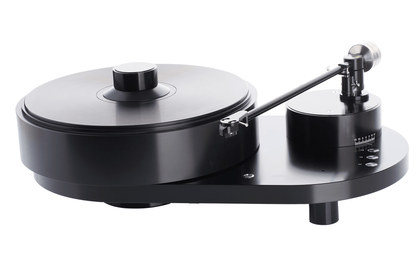

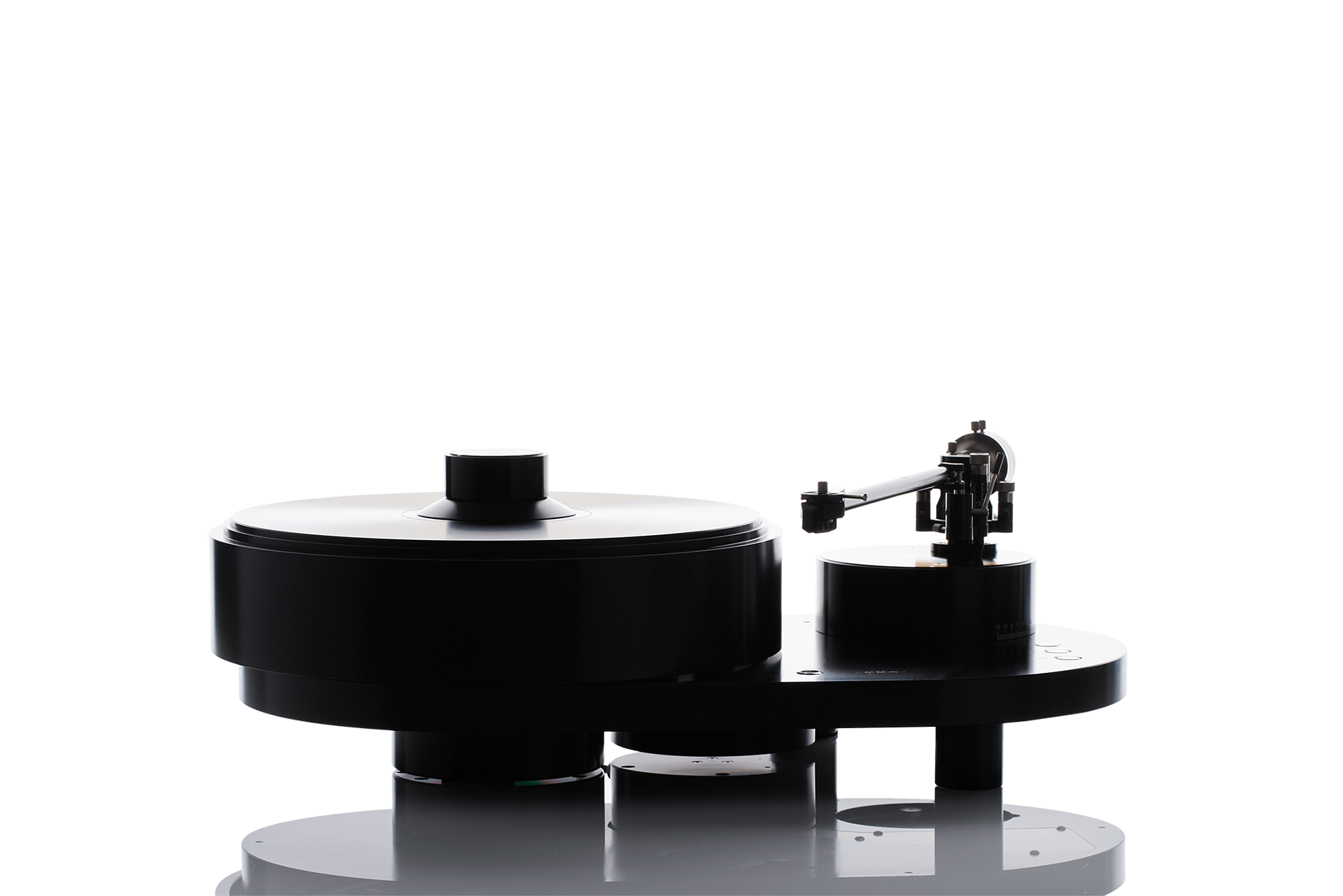

AMG Viella V12 turntable

Q: Why are there different estimated delays prior to sending for some of the products

One of the politics of Ana Mighty Sound is that every order is unique and made for a single customer. You will find next to each item an estimated delay prior to delivery. We will do our best to fulfill it before this delay (and most of the time we do). Please keep in mind that we are a 100% human company working all over the Old World (Europe) and that we do commit to deliver you the best made / best quality product available, and to insure that : this can take some time. Of course… some of our products are in stock !

€17.100,00

Tonearm: 12J2 Tonearm

12J2 Tonearm
12JT Turbo Tonearm
no tonearm
9W1 tonearm

Product variants

Need help?

Pairs well with

AMG Viella V12 turntable

12J2 Tonearm

€17.100,00

Product details

About

High precision, high mass turntable with uniquely expressive spatial and dynamic presentation. An original design of company founder Werner Roeschlau, and the longest standing and most successful turntable from AMG.

Highest manufacturing precision for extremely quiet motor and bearing operation, outstanding performance data, and uncompromising durability, confirmed by strict laboratory testing.

Beautiful combination of sonic authority with visual beauty, a minimalist aesthetic matched with highly dynamic and powerful sound for a perfect combination of form and function.

Refined elegance and impressive technical performance. Manufactured with the utmost care and individually assembled by hand, extensively tested and designed to last for decades.

Specifications

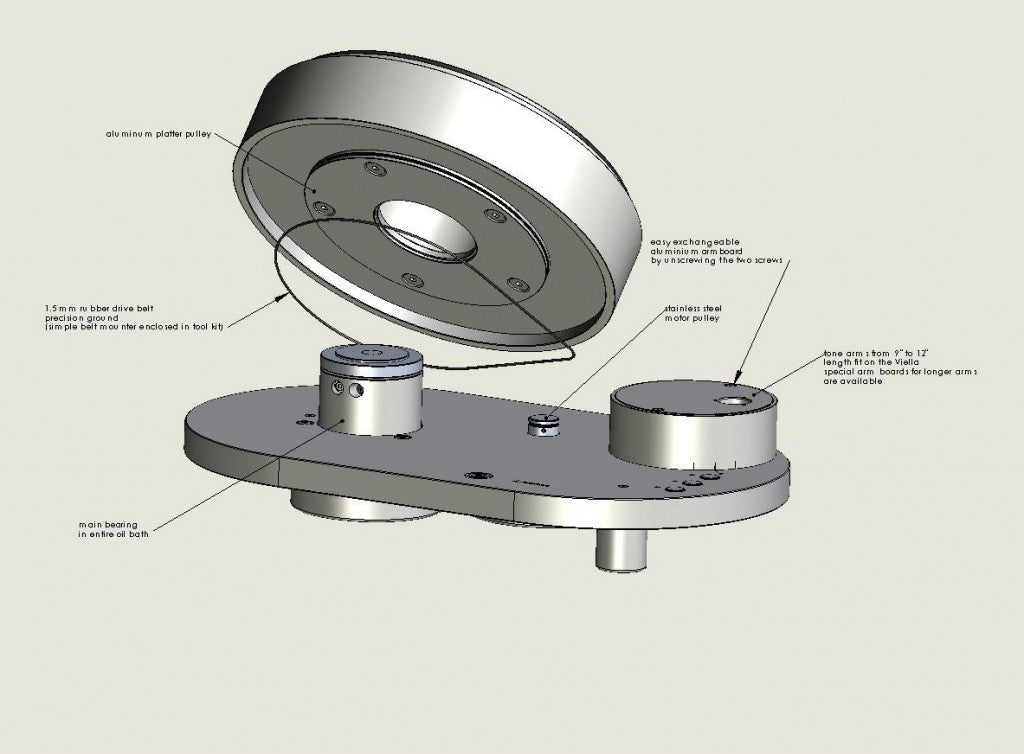

PLATTER BEARING

Hardened 16mm axle bearing, CNC machined ground and lapped
Two-sealed, hydro-dynamically lubricated radial bearings with axial bearings featuring static lubrication
Stainless steel sub-platter interfaces with platter

PLATTER

Decoupled spindle, 2-piece construction
CNC machined in house using aircraft grade aluminum
Weighted rim for enhanced flywheel effect
12.5″ (318mm) diameter, 24.25 lbs. (11Kg) weight

MOTOR

Lorenzi 2-pulse, low-speed brushless, precision 24v DC motor with auxiliary reluctance moment
Sintered bronze bearings
Cured and polished axis
Motor housing acoustically decoupled from plinth via 5 rubber/metal mounts

ELECTRONIC CONTROLS

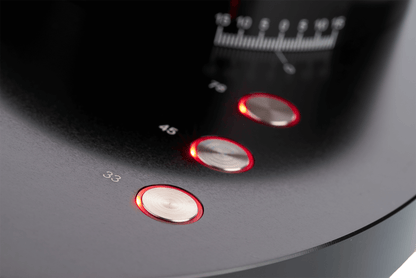

33.3, 45, and 78 rpm speeds with electronic on/off
Backlit capacitive buttons change color with function
Precision speed adjustment for each speed

TONEARM

Bearing:

Dual-pivot design replaces the standard gimbaled bearing
Vertical bearing, similar to a technique used in the rotor heads of helicopters
Uses two .5mm thick “spring steel wires,” allowing fine azimuth adjustment while eliminating bearing play
Horizontal axle is a hardened tool steel, precision ground to a backlash-free fit with a needle roller bearing
It is extremely precise, maintenance free, and never requires adjustment

Armwand:

Aircraft quality
Anodized aluminum tube for resonance control
12 gram effective mass

Counterweight:

2-piece with Teflon decoupled sleeve

Copper Internal Wiring:

Multiple gauges of high quality copper

Magnetic Anti-skating:

Decoupled via ring magnet and 2-bar magnets
Magnetic fields isolated in our patented bearing housing

VTA:

Precision locking system allowing easy adjustment during play

SPECIFICATIONS.

Dimensions: 20 5/8″ x 8″ x 12 7/16″
Weight: 56.4 lbs.

OPTIONS & ADD ONS (ask us)

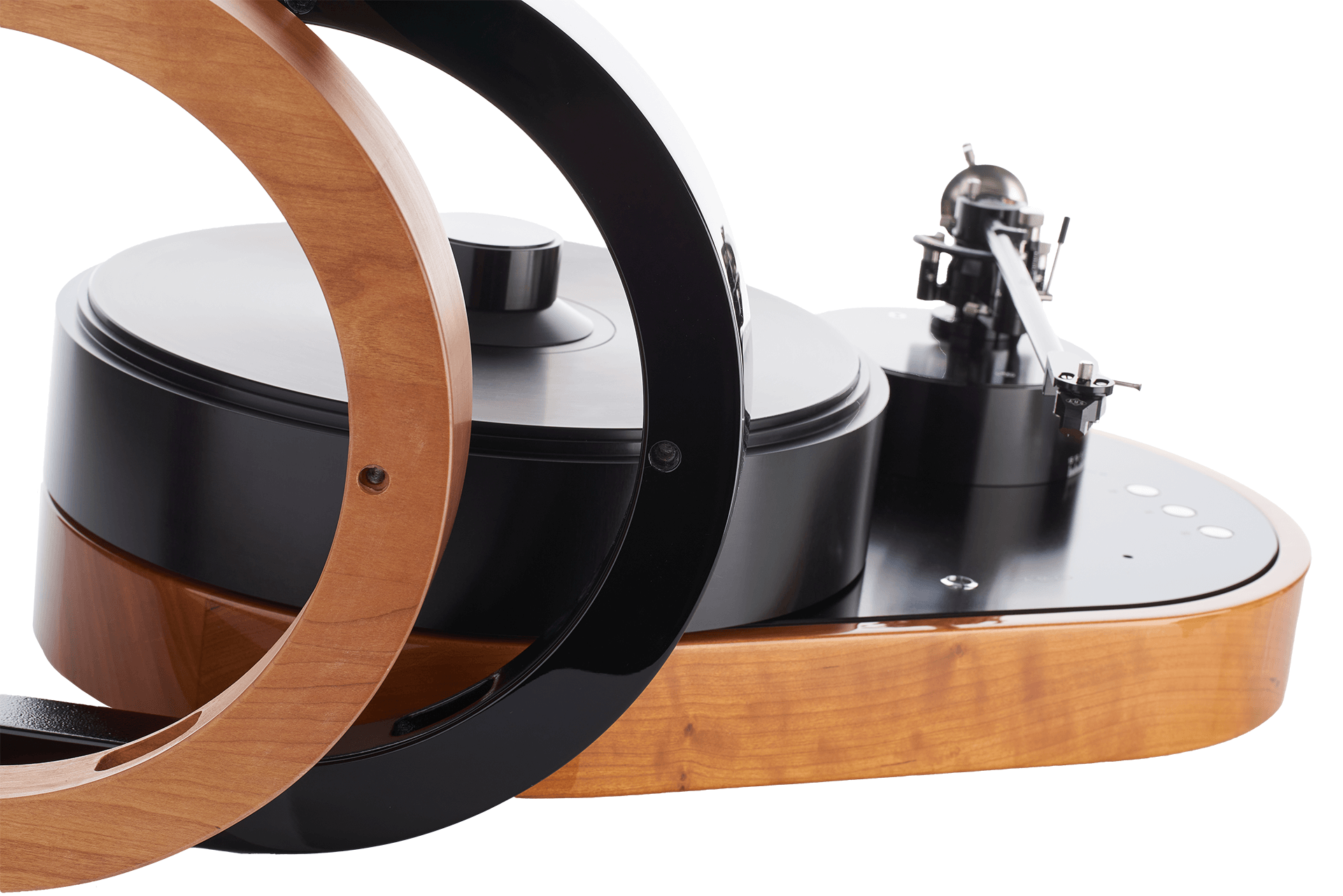

Cherry Wood (oiled or gloss lacquer finish) or Black Lacquer trim skirts
FORTISSIMO Massive armboard adds 2nd tonearm to Viella
CIRCLE Linn Style tonearm mount
OVAL SME mount adaptor
Isolation platform
